High Pressure Leakproof Regulation of Flow suitable for Direct Transmitter Mounting
Provision Bypass/ Equalising of two parallel ports
Suitable for High Pressure Gases, Liquids & Vacuum
100% Factory Tested for guaranteed performance

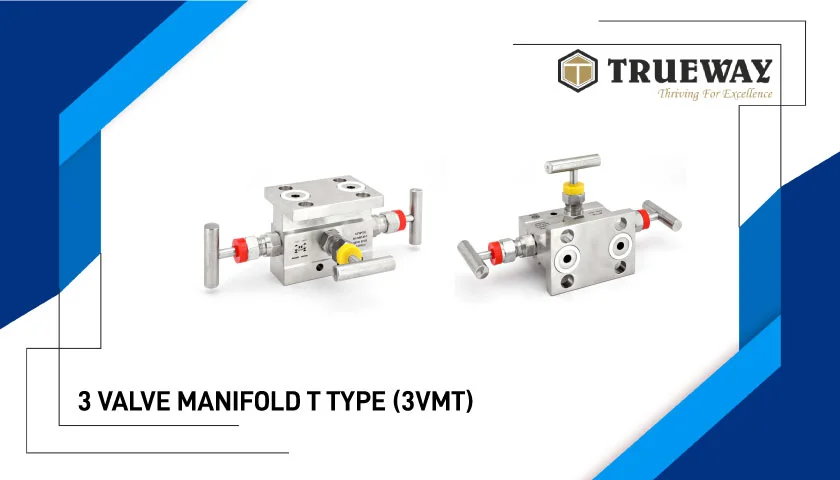

TRUEWAY 3 Valve T Type Manifold is a Multiport Valve suitable for Direct Transmitter Mounting. It is used for high pressure with relatively low flow rates mostly used for DP Transmitters with two valves to start, stop & regulate two parallel inlet/ outlet Ports & third valve to equalize these two parallel inlet/ outlet ports.
| End Connections |
FPT x Transmitter Flange |
| Female Pipe Thread Size (FPT) |
1/4” to 1/2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| OUT/ PROCESS CONN |
Transmitter Flange (TF) |
| TEST PRESSURE |
Up to 10000 psi |
| PACKING
|
PTFE (Grafoil for high temp) |
| Type |
Transmitter Mounting Type (With PTFE Seal Rings & 4 Bolts) |
| MOC |
SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) |
MOC*-3VMT-IN*-TF |
TRUEWAY 3 Valve T Type Manifold is a Multiport Valve suitable for Direct Mounting on Transmitter. It is used for high pressure with relatively low flow rates mostly used for DP Transmitters with two valves to start, stop & regulate two parallel inlet/ outlet Ports & third valve to equalize these two parallel inlet/ outlet Ports. It has 2 Nos threaded inlets, 2 Nos flanged outlets & 3 Nos regulating spindles. Drain Ports are optionally available. It is an assembly of precision designed components as Body, Spindle, Bonnet, Handle & Packing material.
-
