Product:Pipe Union (PU) With Screwed Ends
End Conn 1 Thread type NPT Female End Conn 2 Thread type NPT Female Model No. For MOC: SS316
1/4 1/4 SS-PU-4F-3000
3/8 3/8 SS-PU-6F-3000
1/2 1/2 SS-PU-8F-3000
3/4 3/4 SS-PU-12F-3000
1 1 SS-PU-16F-3000
1-1/4 1-1/4 SS-PU-20F-3000
1-1/2 1-1/2 SS-PU-24F-3000
2 2 SS-PU-32F-3000
With Socket Weld Ends
End Conn 1 Socket Weld End Conn 2 End Conn 2 Socket Weld
1/4 1/4 SS-PU-4SW-3000
3/8 3/8 SS-PU-6SW-3000
1/2 1/2 SS-PU-8SW-3000
3/4 3/4 SS-PU-12SW-3000
1 1 SS-PU-16SW-3000
1-1/4 1-1/4 SS-PU-20SW-3000
1-1/2 1-1/2 SS-PU-24SW-3000
2 2 SS-PU-32SW-3000
For following Material Grade(MOC) Replace First
Two Letters of Model No. with following
SS316L SSL
SS304 S4
SS304L S4L
Brass B
Alloy 400 ML
Alloy 600 INC
Alloy C276 HC
Carbon Steel CS

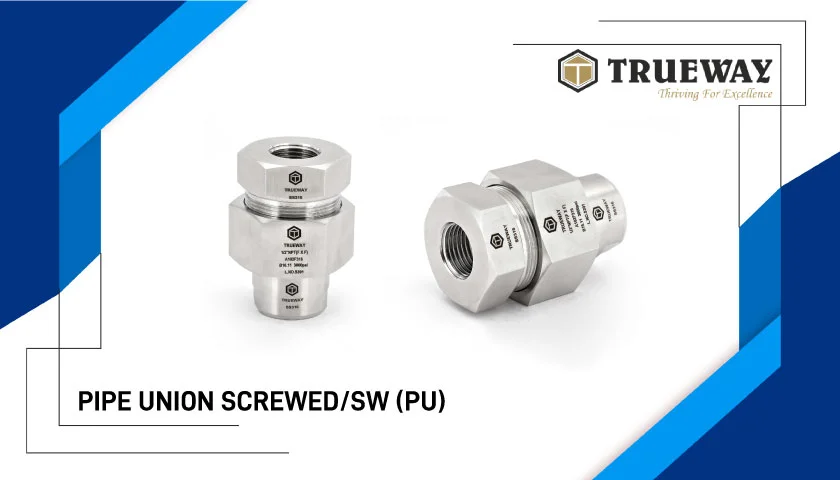

PIPE UNION SCREWED/SW (PU)

  • Home
  • Pipe Union Screwed/SW (PU)
PIPE UNION SCREWED/SW (PU)

Features

Suitable for High Pressure Gases, Liquids & Vacuum Special design for easy Installation & opening

When Used

It is used for achieving high pressure leakproof joint between two Male threaded open ports or Pipe open ports by threading or welding as per design, with a provision to open the Connection without disturbing Joints at both ends.

Technical Specification

End Connections FPT/ MPT/ SW
SOCKET WELD PIPE SIZE (SW) 1/8” to 2” NB
PIPE THREAD SIZE (MPT/FPT) 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request)
TYPE Soft Seal type or Metal to Metal Seal Type
TEST PRESSURE Up to 9000 psi
SEAL RING Viton/ Nitrile/ PTFE
MOC SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc
Model No Designator (*) MOC*-PU-SIZE1*-SIZE2-CLASS

Download Model Chart

Download Now

Inquiry For PIPE UNION SCREWED/SW (PU) Product


Description

TRUEWAY Pipe Union Screwed/ SW is a Straight Connector with Female Pipe Threads or Socket Weld Type Connection on both ends. It has a provision for opening the Line connected, without disturbing Joints at both Ends. It comprises of precision engineered components as Body, Nut, Nipple & Soft Seal. It is used for achieving high pressure leakproof joint between two Male threaded open ports or Pipe open ports by threading or welding as per design, with a provision to open the Connection without disturbing Joints at both ends.

Industries

Instrumentation

Chemicals

Oil & Gas

Hydraulics

Power

Steel

Fertilizers

Petrochemicals

Pharmaceuticals
